IBM Ponder This #275 · March 2021

While the real Perseverance rover is having fun on Mars, we imagine an alternative version that scouts out an NxN grid of Mars according to the following rules:

1. Surveying a cell is possible only if all its upper neighbors were already explored. The upper neighbors of (a,b) are defined as (a-1,b-1), (a-1,b), (a-1,b+1). Cells that are not on the NxN grid do not need to be surveyed first.
2. Each cell has a "score" between 0-255 points, indicating how valuable it is to explore it.
3. Exploring a cell also requires rover maintenance, equivalent to a "cost" of 128 points.

The goal of the rover is to earn the maximum score possible from the grid. This means choosing which cells to explore that satisfy condition 1, such that the total score gained, considering 2 and 3, is the maximum score possible.

We represent the grid as an NxN array of numbers given in hexadecimal format.
As an example, consider the following 4x4 grid representation:

13 92 49 EC
BD 31 E8 FF
09 DD BE DE
C9 5A 1D 36

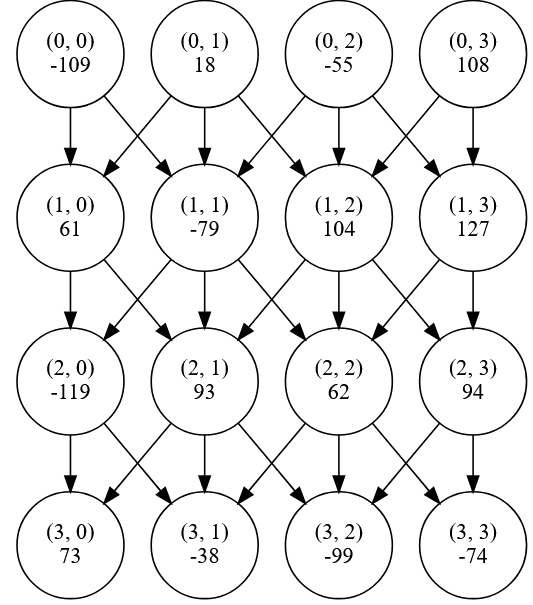

Which represents the following grid (the arrow A->B means "Exploring A is a prerequisite to exploring B"):

For example, the value -109 in cell (0,0) is obtained by converting 13 in hexadecimal notion to 16+3=19 and subtracting 128, obtaining -109.
Similarly, the value 18 in (0,1) is obtained by converting 92 to 9*16+2=146 and subtracting 128.

For the grid above, the optimal score is 424, and can be achieved via the following set:

[(0, 0), (0, 1), (0, 2), (0, 3), (1, 0), (1, 1), (1, 2), (1, 3), (2, 1), (2, 2), (2, 3)]

Your goal: Find the maximum score and a set of cells achieving it for the following 20x20 grid:

BC E6 56 29 99 95 AE 27 9F 89 88 8F BC B4 2A 71 44 7F AF 96
72 57 13 DD 08 44 9E A0 13 09 3F D5 AA 06 5E DB E1 EF 14 0B
42 B8 F3 8E 58 F0 FA 7F 7C BD FF AF DB D9 13 3E 5D D4 30 FB
60 CA B4 A1 73 E4 31 B5 B3 0C 85 DD 27 42 4F D0 11 09 28 39
1B 40 7C B1 01 79 52 53 65 65 BE 0F 4A 43 CD D7 A6 FE 7F 51
25 AB CC 20 F9 CC 7F 3B 4F 22 9C 72 F5 FE F9 BF A5 58 1F C7
EA B2 E4 F8 72 7B 80 A2 D7 C1 4F 46 D1 5E FA AB 12 40 82 7E
52 BF 4D 37 C6 5F 3D EF 56 11 D2 69 A4 02 0D 58 11 A7 9E 06
F6 B2 60 AF 83 08 4E 11 71 27 60 6F 9E 0A D3 19 20 F6 A3 40
B7 26 1B 3A 18 FE E3 3C FB DA 7E 78 CA 49 F3 FE 14 86 53 E9
1A 19 54 BD 1A 55 20 3B 59 42 8C 07 BA C5 27 A6 31 87 2A E2
36 82 E0 14 B6 09 C9 F5 57 5B 16 1A FA 1C 8A B2 DB F2 41 52
87 AC 9F CC 65 0A 4C 6F 87 FD 30 7D B4 FA CB 6D 03 64 CD 19
DC 22 FB B1 32 98 75 62 EF 1A 14 DC 5E 0A A2 ED 12 B5 CA C0
05 BE F3 1F CB B7 8A 8F 62 BA 11 12 A0 F6 79 FC 4D 97 74 4A
3C B9 0A 92 5E 8A DD A6 09 FF 68 82 F2 EE 9F 17 D2 D5 5C 72
76 CD 8D 05 61 BB 41 94 F9 FD 5C 72 71 21 54 3F 3B 32 E6 8F
45 3F 00 43 BB 07 1D 85 FC E2 24 CE 76 2C 96 40 10 FB 64 88
FB 89 D1 E3 81 0C E1 4C 37 B2 1D 60 40 D1 A5 2D 3B E4 85 87
E5 D7 05 D7 7D 9C C9 F5 70 0B 17 7B EF 18 83 46 79 0D 49 59

Supply your solution as a number and a list of cells, given in the exact format above of a Python list of tuples (between the opening and closing brackets, each cell is listed as "(a,b)", with a,b as comma-separated integers).

A bonus '*' will be given for supplying a 5x5 grid, given in the same hexadecimal format as above, which maximizes the total number of distinct scores that can be obtained by sets of cells satisfying condition 1 (if a cell is present, so are its upper neighbors).

Solution

Best opened after a real attempt

To be added.
