Exploring the Hilbert Curve
The Hilbert curve is a space-filling curve described by the great German mathematician David Hilbert in 1891.
It is defined as the limit of the following process:
We start with a square of side 1 that we divide in 4 parts.

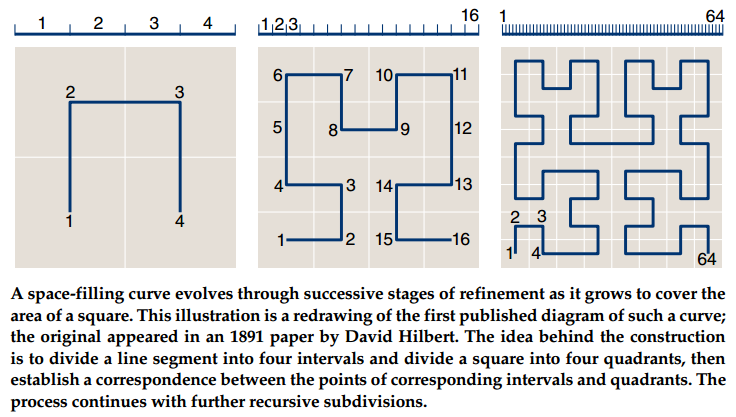

We join the center of each sub-square as shown in the picture.
We repeat the process by dividing the square in 16 parts.
The Hilbert curve is the curve obtained when continuing this process infinitely.
As this curve encounters every point in the square, we can establish a bijection between the square and the segment [0,1], as shown in the picture.
What is the point which corresponds to the value in the interval [0,1]?
What point in the interval [0,1] corresponds to the point in the square ?
( is the Euler Mascheroni constant)
Answer format: // Truncate the values at 10 digits after the decimal point.
Hint:
You are given the point in the square corresponding to in the interval [0,1]:
[My timing: < 1 sec]
Credit to Brian Hayes for the pictures
